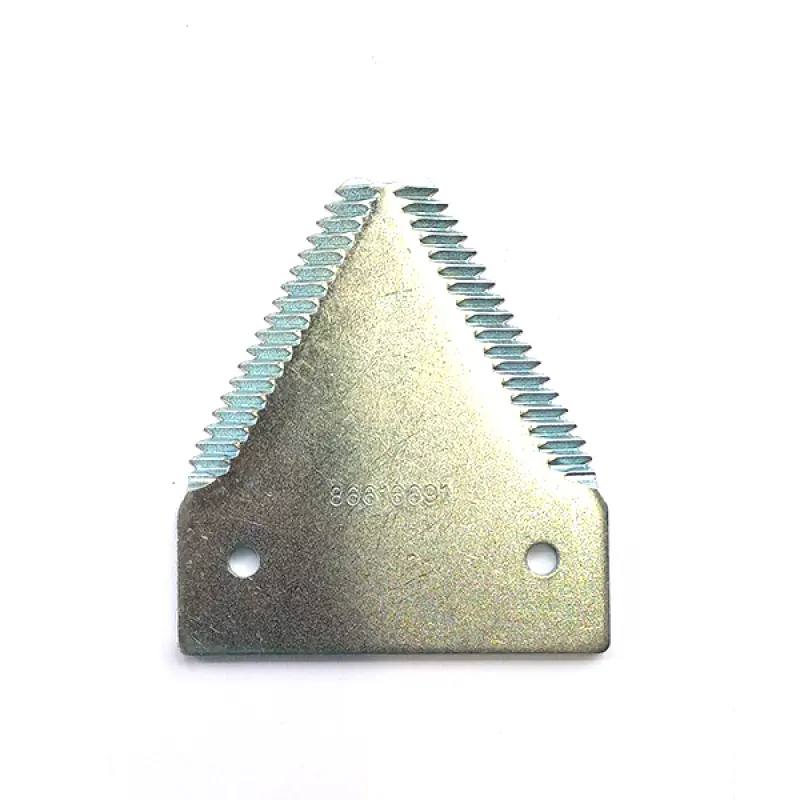

86616691 Cutter bar segment (large cutout) CNH (SAM)
| Description | The cutter bar segment is a trapezoidal steel plate with sharp, serrated cutting edges. It is made of alloy, hardened steel, which ensures high resistance to wear and cracking during intensive work. The segment has mounting holes at the base and is attached to the knife blade using rivets or a threaded connection. This ensures clean cutting of plant material, stable operation of the cutting unit, and reduced losses during harvesting. Thanks to precise geometry and standard mounting holes, a tight fit on the knife and stable operation of the cutting unit without vibrations are ensured. |
86616691 – Head segment with thick teeth for Case IH / New Holland
86616691 is a popular head segment with thick teeth designed for heads of Case IH, New Holland, International, Gehl, and others, as well as mower drums. It fits heads of series 820, 1010, 1020, 1100, 1200, 1300, and others.
Main specifications:
Width: ≈3″ (76mm); Height: ≈3¼″ (≈83mm)
Mounting hole spacing: 2.062″ (≈52mm)
Weight: approx. 0.19 pounds (~0.086 kg)
Compatibility:
Case IH 820, 1010, 1020, 1100, 1200, and 1300 Series
New Holland 2550 Headers, etc.
Replaces part numbers: 112074A1, 826720C3, 124737, 231-271, 231-211, 700705299, 9622744
Advantages:
The large toothed segment is ideal for wet, dense crops
Summary:
86616691 is a reliable and durable head segment with a large tooth, designed for heads and mowers of Case IH, New Holland, International, and Gehl, ensuring smooth cutting even in challenging conditions.
