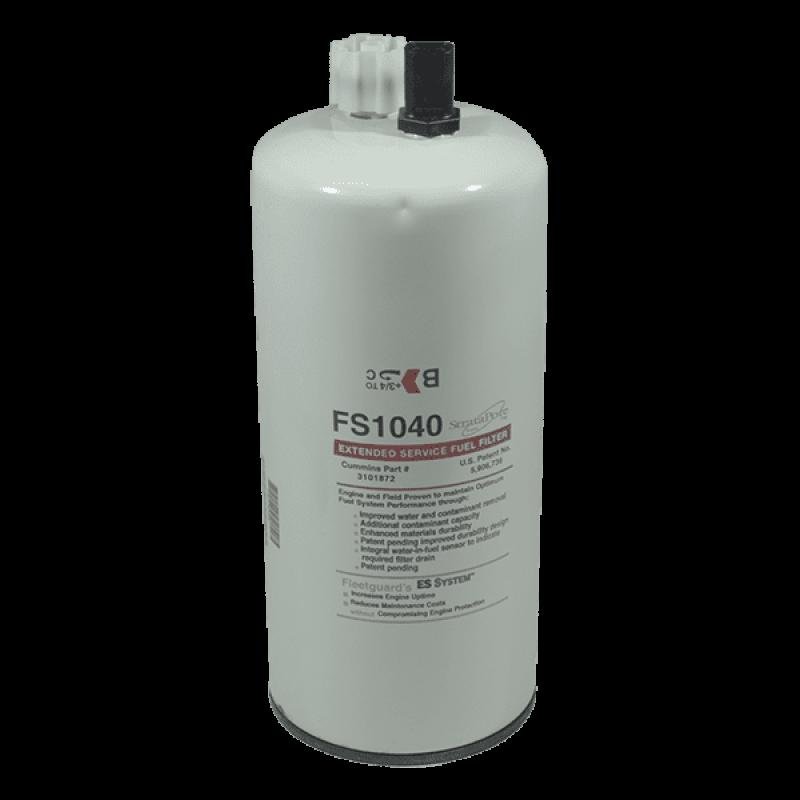

FS1040 Fuel Filter/Cleaning Filter Fleetguard

FS1040 – Fuel/Water Separator Screw-On, Fleetguard

FS1040 is an original, screw-on fuel separator from Fleetguard, designed to remove water and mechanical contaminants, providing protection for the fuel system in trucks and passenger cars, including brands CaseIH and NewHolland.

Specification:

Type: screw-on fuel/water separator with Stratapore element – ideal for high durability applications, effectively separates water up to 95%

Dimensions: outer diameter: ~118–119 mm (≈4.65–4.68 inches)

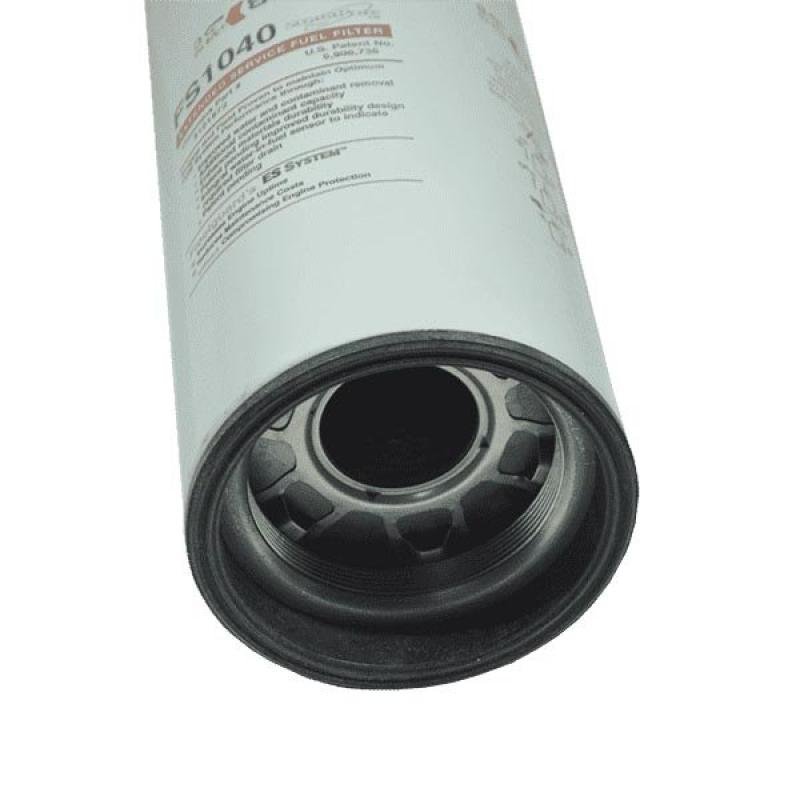

Seal: inner diameter of the seal ~101.6 mm

Height: ~292–294 mm (≈11.57 inches)

Filtration: effective retention of contaminants up to 25 µm, TWA efficiency ~98.7% according to SAE J1985, free water separation ≈95%

Compatibility:

Suitable for a wide range of applications:

OEM references: CaseIH 419858A1, New Holland 84557717, Cummins 3101872/4010651/3331096/4924640, Baldwin BF1277-SP, Donaldson P551047, Luber-Finer LFF1007, Wix 33423, etc.

Used in Cummins engines, specialized equipment, trucks, tractors, and combines of the CNH, CaseIH, New Holland brands, and others.

Advantages:

• Reliable protection: removes water and solid particles, protects the injection pump and injectors from corrosion and clogging.
• High performance: Stratapore media ensures long-lasting operation without loss of filtration quality.
• Easy replacement: screw-on design simplifies maintenance – no additional seals and tools required.
• Lower operating costs: increased durability and shorter service intervals reduce maintenance costs.
