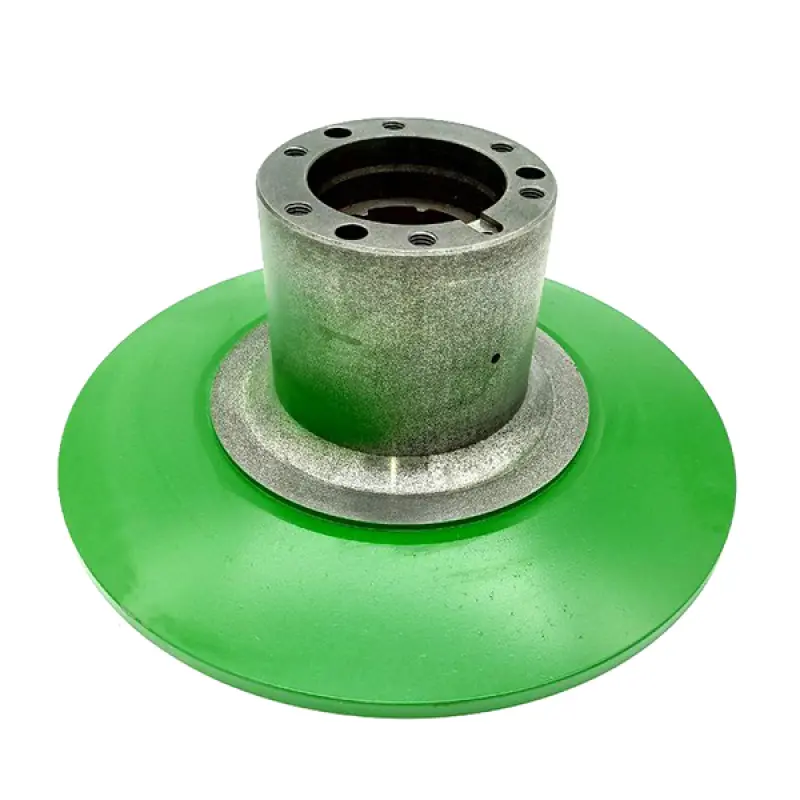

H223211 JOHN DEERE (Royal Tiger) Inner half of the reverse conveyor

H223211 – Inner half of the pulley wheel

Description

Part H223211 is an inner half of the pulley wheel, mounted in the variator of the inclined conveyor drive of John Deere grain harvesters. This element works with the outer half of the pulley wheel in a variable speed drive system, where it transmits torque and ensures the proper operation of the inclined conveyor during the feeding of the harvested mass.

The inner half of the pulley wheel is a key component of the mechanism that ensures efficient and smooth power transfer from the drive to the conveyor and stable operation of the harvester's components.

Main features

• Catalog number: H223211
• Type: inner half of the variator pulley (inner half sheave)
• Purpose: torque transmission in the inclined conveyor drive through the variator
• Application: John Deere grain harvesters (especially S and STS series models)
• Construction: half of a variable speed drive pulley, designed to work with belts, made of durable metal for load-bearing work

Compatibility (example models)

The inner half of the pulley wheel H223211 is most commonly used in John Deere harvesters of the following models:

• 9660, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
• S650, S660, S670, S680, S690HM, S760, S770 and other models with variator inclined conveyor drive

Advantages

• ensures efficient and smooth torque transmission in the variator system;
• contributes to the stable operation of the inclined conveyor, which is essential for continuous feeding of the harvested mass;
• made of durable materials resistant to intensive field loads;
• an important element of the variable speed drive, affecting the efficiency and lifespan of the machine.
