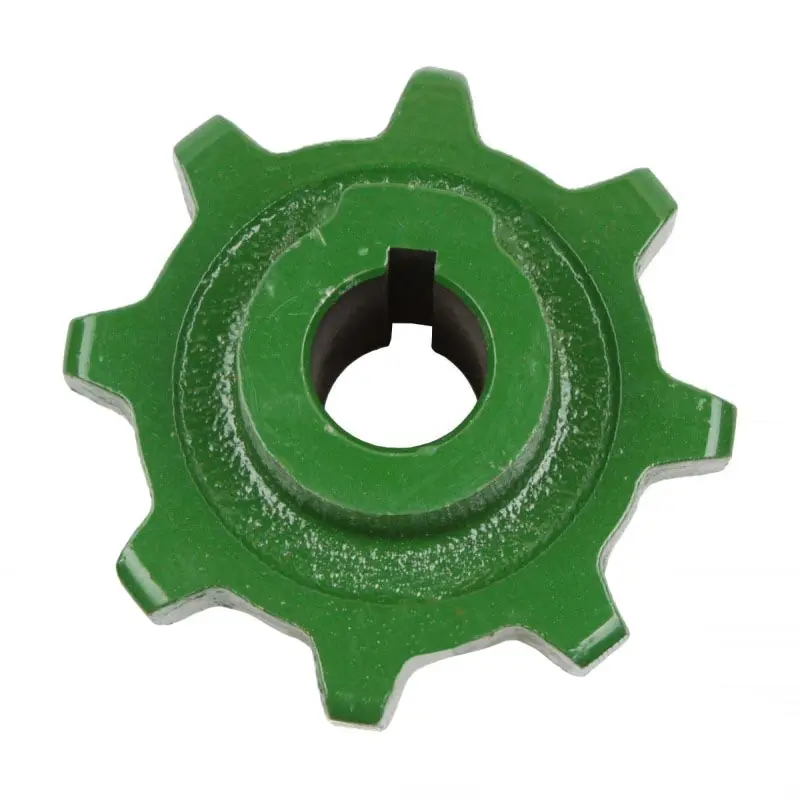

H164796-AP Sprocket z = 8 John Deere
| Weight | 1.52 kg |
| Size | Inner diameter d - 30 mm, Outer diameter D - 120 mm, Height H - 66 mm |
| Additionally | Number of teeth Z8, Keyway - 7.5x66x5 mm, Outer diameter D1 - 95 mm |
Sprocket H164796 for John Deere combine with 8 (8 teeth) on the conveyor.<\/p>
Sprocket H164796 is one of the essential components of the combine, designed for chain transmission of torque between two parallel conveyor shafts using a flexible element - the chain.<\/p>
It serves as a spare part for the JOHN DEERE combine conveyor of several series: 9540, 9560, 9580, 9640, 9650, 9660, 9680, 9750, 9780, 9880.<\/p>
The sprocket is mounted on a shaft with a diameter of 30 mm. To connect to the shaft, a special keyway is made in the center hole, and 2 threaded holes are cut on the side surface of the arm.<\/p>
Visually, the sprocket is a profiled wheel with eight teeth, single-row. A dense paint coating is applied on top. It additionally protects against external harmful environmental influences.<\/p>
Before choosing the appropriate sprocket, we recommend paying attention to the following main parameters: roller width, chain pitch, outer diameter, number of teeth, width, keyway parameters, and shaft diameter.<\/p>
You can purchase H164796 for John Deere combine by contacting our online managers via the feedback form, email, phone, or through the Art Agro store cart.<\/p>
